Features:

Model: Gobi5000/EM7345

Network type:LTE-FDD,HSPA+,GSM/GPRS/EDGE

Interface Type: NGFF M.2

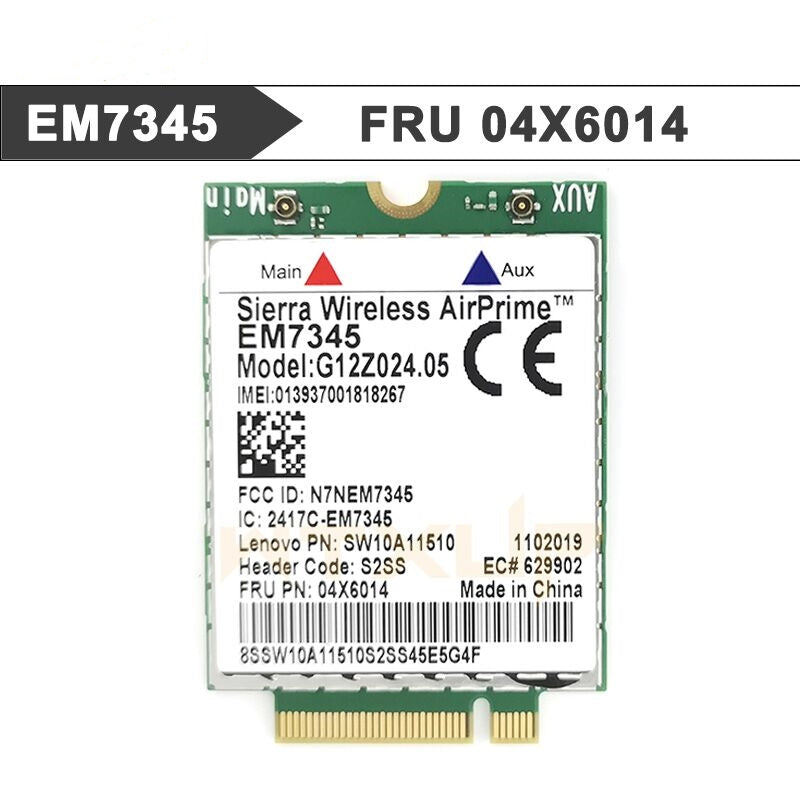

FRU PN:04x6014

Product size: 42mmX30mm

Support:

ThinkPad Helix 2nd Gen types:20CG，20CH.ThinkPad X1 Carbon types:20A7,20A8.ThinkPad X1 Carbon types:20BS,20BT.ThinkPad L440,L450,L540.ThinkPad T431s,T440,T440p,T440s.ThinkPad T450,T450s.ThinkPad T540p,T550,ThinkPad W540,W550s,W541.ThinkPad X240,X250.ThinkPad -8,ThinkPad -10,ThinkPad YOGA-15.

The ThinkPad EM7345 4G LTE Mobile Broadband is a wireless WAN-ready option that provides high speed on the go internet access. WWAN is a predictable, cost-efficient remote access solution. Instead of managing the setup, use, and payment of multiple connectivity solutions for your remote workers (remote office connectivity, hotel and airport Wi-Fi, and home office access), you can use a single, cost-effective solution with wide national coverage, consistent experience, simple setup, comprehensive support, and predictable cost. .

 Features and Benefits of ThinkPad EM7345 4G LTE (4XC0F46957):

 LTE/HSPA+ Support

Open SIM

Delivers a true broadband experience to any device, anytime, anywhere.

Technical Information:

UMTS(WCDMA)/HSPA+ supported bands:

Band 1 (2100MHz)

Band 2 (1900MHz)

Band 4 (AWS 1700/2100 Mhz)

Band 5 (850MHz)

Band 8 (900MHz)

LTE supported bands:

Band 1 (2100MHz)

Band 2 (1900MHz)

Band 3 (1800MHz)

Band 4 (AWS 1700/2100 Mhz)

Band 5 (850MHz)

Band 7 U:2500 MHz - 2570 MHz D:2620 MHz - 2690 MHz

Band 8 U:880 MHz - 915 MHz D:925 MHz - 960 MHz

Band 13 (700MHz)

Band 17 (700Mhz)

Band18 U:815 MHz - 830 MHz D:860 MHz - 875 MHz

Band19 U:830 MHz - 845 MHz D:875 MHz - 890 MHz

Band 20 U:832 MHz - 862 MHz D:791 MHz - 821 MHz

GSM/GPRS/EDGE data at 850 MHz, 900 MHz, 1800 MHz, and 1900 MHz

GPS data at 1575.42MHz and 1227.6MHz

GLONASS data at 1602Mhz and 1246MHz

Performance Specifications:

Supported Voltage range: 3.135 V to 3.6 V

Operating Voltage: 3.3V

VBAT voltage range: 3.135V to 4.4V

Average Standby Power (RF radio off) < 10mW

Selective Suspend support (connected to network) <4mW

Data Transfer Peak current is 2.5 A

HSPA+ data rates downlink up to 42 Mbps and Uplink up to 5.7Mbps

GPRS class 33

EDGE class 33

WCDMA

Operating environment:

 The module full operating temperature in compliance with 3GPP specification shall be -10 °C to +55 °C.

Extreme operating condition: +55 °C to +70 °C

Non operating environment:

 Temperature: -40 deg to 70 deg (B) (-40 deg to 158 deg (F)

Relative humidity: 5% to 95%

Package Included:

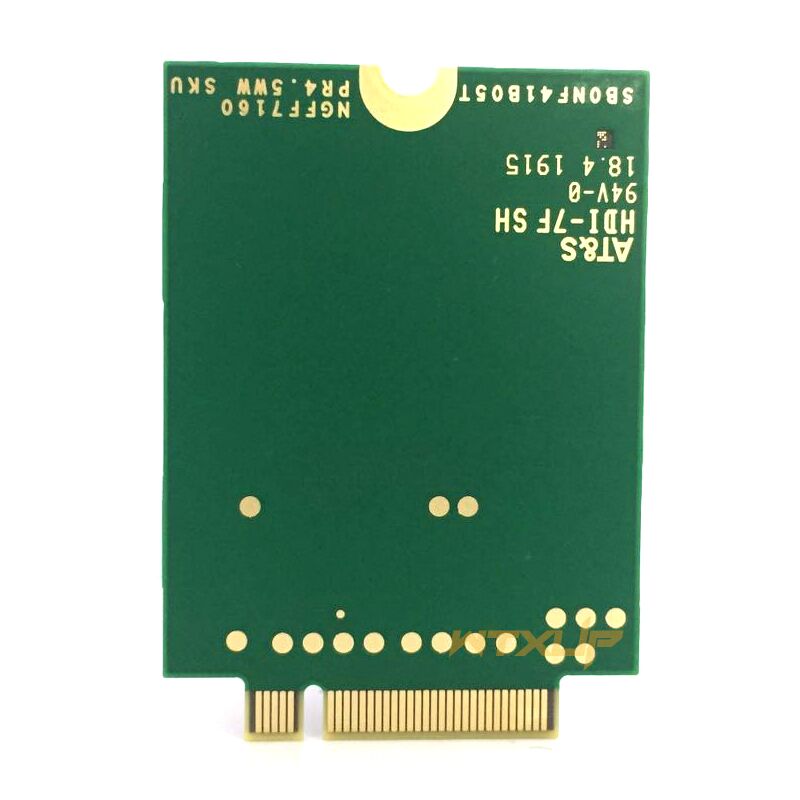

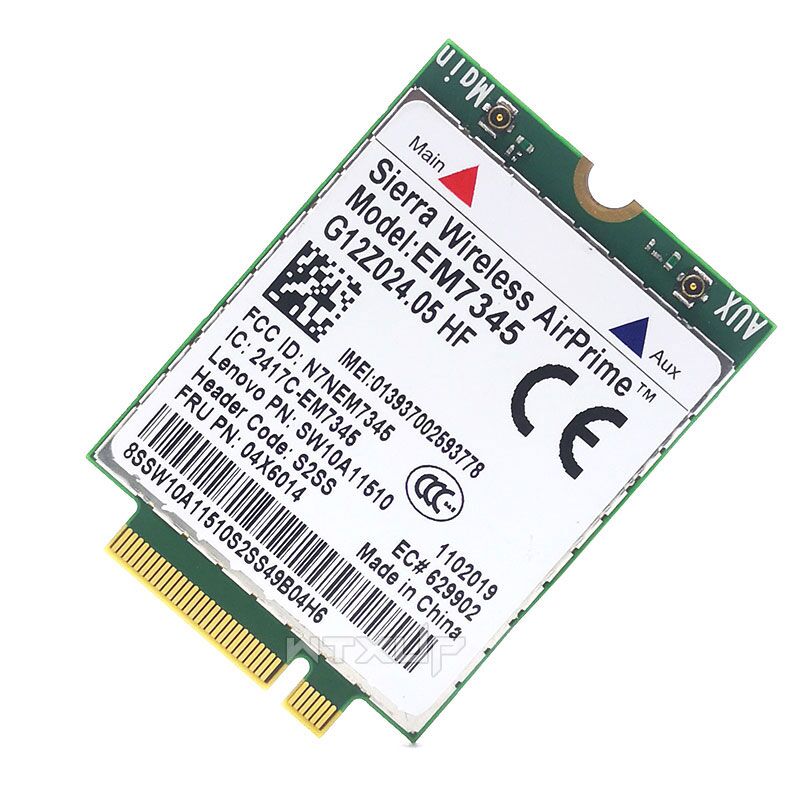

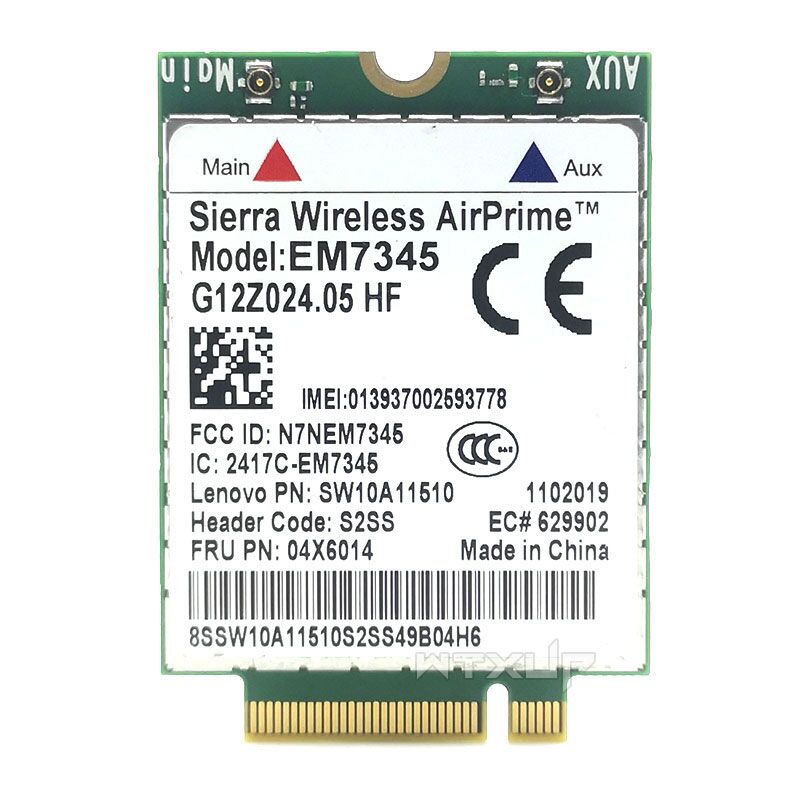

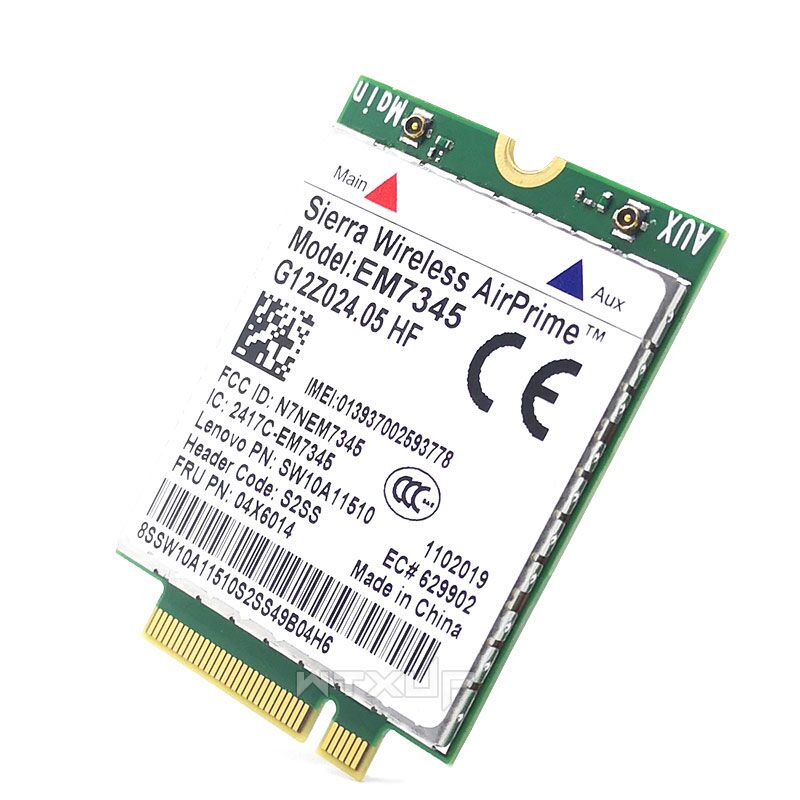

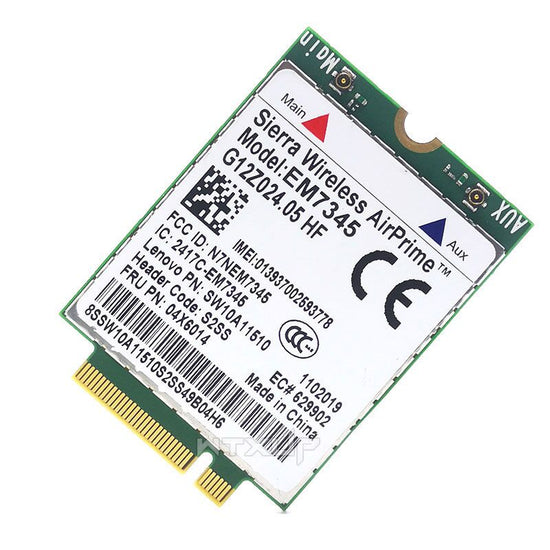

1 x EM7345 4G Module
