Features:

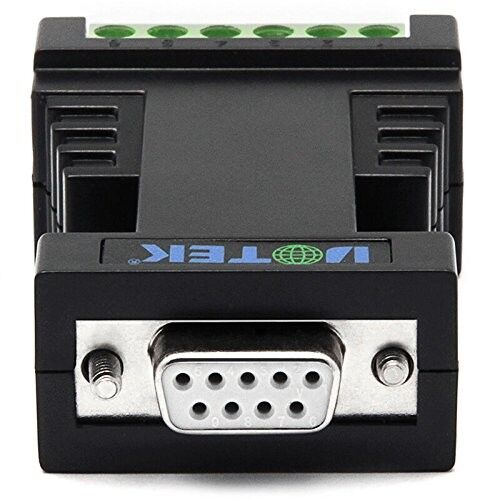

RS-232 side in DB9 female,

RS-485/422 side in binding post

Max connection: 32 RS485/422 devices; Max distance: 1.2 KM.

Baud rate: 300BPS-115.2KBPS;

Size:61mm x 41mm x 21mm

Environment:-40¡æ to 85¡æ, Relate humidity 5-95%

Protection:

+/-15KV ESD protection for RS-232 interface

Photoelectric isolation voltage: 2.5KVrms /500VDC

600W lightning strike and grounding interference protection for RS-485

Application fields:

Factory automation system

. Distributed control system

. Other RS232/485/422 serial device wireless network

. LED INFO display equipments

. PLC control and management

. SCADA, measuring instruments and monitoring system

. CNC management

. Medical treatment/medication automation

. Building automation

. Check on work attendance/ Human resource management

Package Included:

1 x RS232 to RS485/422 Converter
